Application

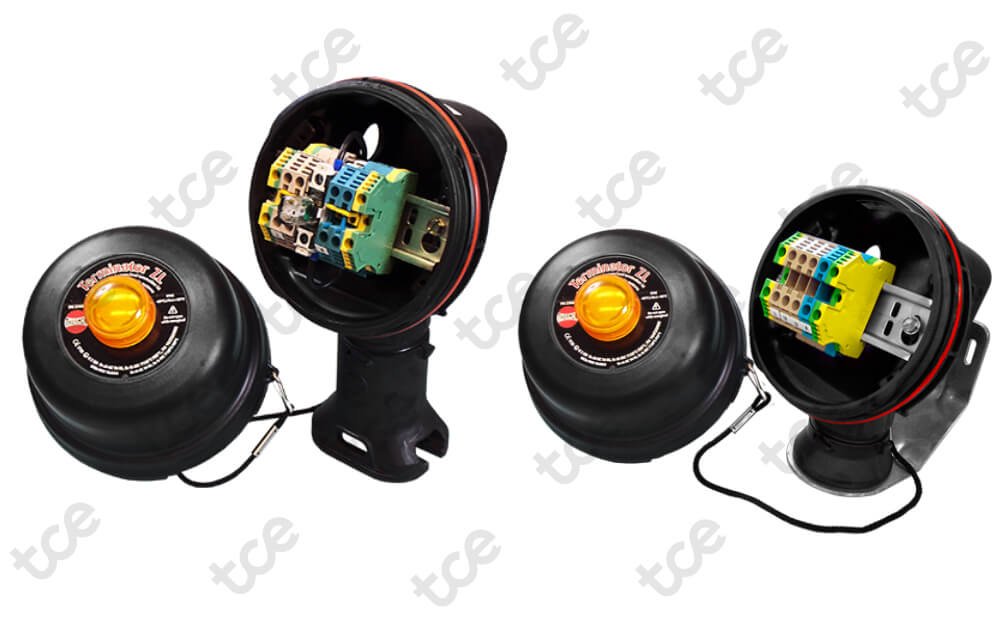

Thermon Terminator nonmetallic heating cable termination kits are designed specifically for rapid, trouble-free installation of Thermon heating cables. The integral design of these nonmetallic kits are available with XP pipe mounted fitting or with WP wall mounting bracket, heating cable grommet and cable strain relief into a single assembly. Screws for securing the covers of the kits have been eliminated to simplify cover installation while providing additional security (a tool is required to remove the cover after installation). Terminator ZL kits are designed to provide visual indication of an energized heating circuit. The kit may be utilized as a power connection or an end termination kit. Electrical connections are made in terminal blocks utilizing nickel-plated copper terminals to ensure corrosion-free electrical integrity.
Terminator ZL kits are approved for use in ordinary (nonclassified) areas, and are certified to the ATEX directive for use in Category 2 and 3 (Zone 1 and 2) classified areas.
SKU | P/N | Item | Cable profile | Mounting type | Market |
---|---|---|---|---|---|
TMN.A30.047 | 23363 | TERMINATOR ZL-XP | BSX, RSX, KSX, HTSX, USX, VSX-HT, HPT, FP | Pipe | Europe |
TMN.A30.048 | 40-433.112.225 | TERMINATOR ZL-WP | BSX, RSX, KSX, HTSX, USX, VSX-HT, HPT, FP | Wall | Europe |
Resources
Datasheet
English (Europe) datasheet
Sales brochure
English (Europe) sales brochure
Installation manual
English (Europe) installation instructions Terminator ZL-XP
English (Europe) installation instructions Terminator ZL-WP
Certifications/Approvals
CE
0344 2809
Ex
II 2 GD Ex db eb IIC T6...T5, Ex tb IIIC T85°C…T100°C
FM 10ATEX0058X
IEC IECEx
IECEx FMG 10.0022X Ex db eb IIC T6...T5
Ex tb IIIC T85°C…T100°C
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- Enclosure Rating
- IP66
- Maximum pipe exposure temperature
- 250°C
- Minimum installation temperature
- -60°C
- Operating ambient temperature
- -60°C to +55°C
- Electrical connection
- Terminal block
- Number of power connections
- 1 cable
- Number of in-line/ T-splices
- n/a
- Number of end terminations
- 1 cable
- Maximum conductor size
- 6 mm²
- Maximum voltage rating
- See indicating lamp
- Maximum rated current
- 50 Amps
- T-rating, Ta = 40°C
- T4 @ 46 Amps / T6 @ 22 Amps
- Indicating lamp service life rating
- 100,000 hours
- Indicating lamp operating voltage range
- Up to 264 Vac
