RTD-100-S
Features
- 316 SS RTD probe
- Maximum 482°C
- NEMA 4X
Application

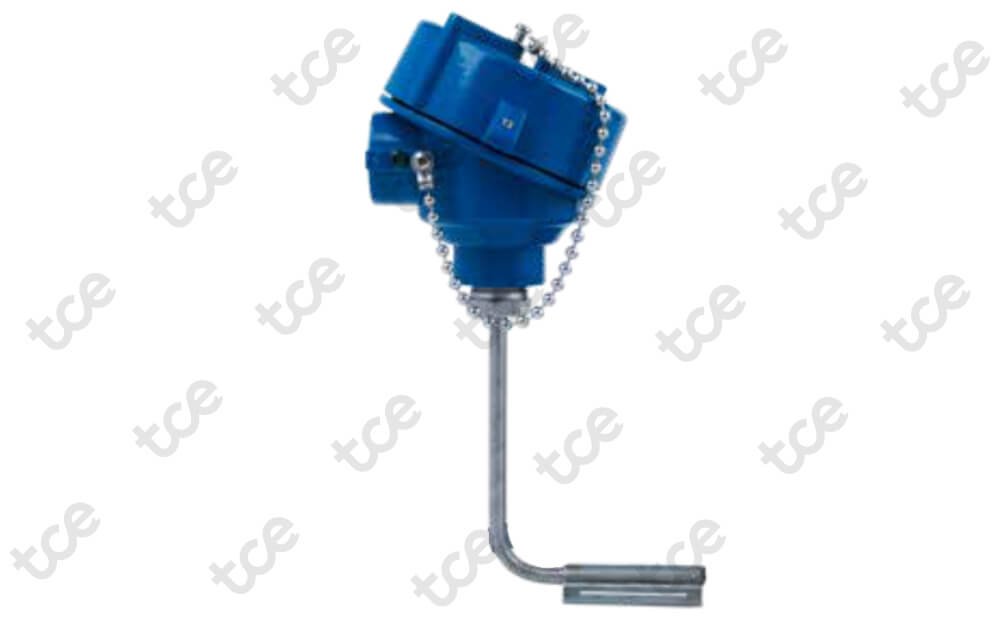

The Thermon RTD-100-S is designed for use as control input for freeze protection and temperature maintenance applications requiring pipewall or tankwall temperature sensing. A cast-aluminum NEMA 4X enclosure and terminal block allows ease of wiring into a single unit that can be installed directly onto a heat traced pipe. The RTD-100-S housing and mounting pad are stainless steel. Mounting pad is slotted to accommodate banding straps. The RTD-100-S is suitable for use in heat tracing applications where surface temperatures do not exceed 482°C.
Product reference legend

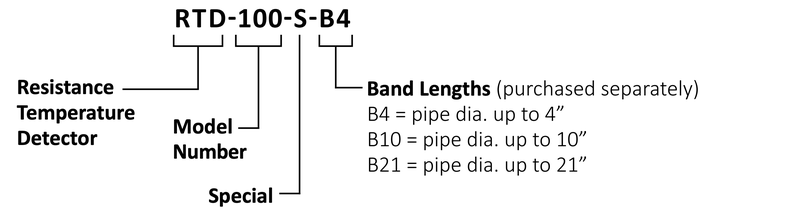

Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Certifications/Approvals
Canadian Standards Association
The RTD-100-S is CSA certified for use in North America.
Hazardous (Classified) Locations
Class I, Groups B, C and D
Class II, Groups E, F and G
Class III
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- Electrical connection
- Tension clamp terminals
- Enclosure rating
- NEMA 4X
- Enclosure hub size
- 3/4” NPT female hub
- RTD leads
- 22 AWG fiberglass
- RTD type
- 3-wire platinum thin film
- RTD resistance
- 100 ohms at 0°C
- RTD tolerance
- IEC 60751 Class B
- Temperature coefficient
- 00385 Ohms/Ohms - °C
- Maximum sensor temperature
- 482°C
- Sensor housing material
- 316 stainless steel
