TCM2
Features
- Dual-circuit system
- Control & monitoring
- Up to 2 circuits
Application

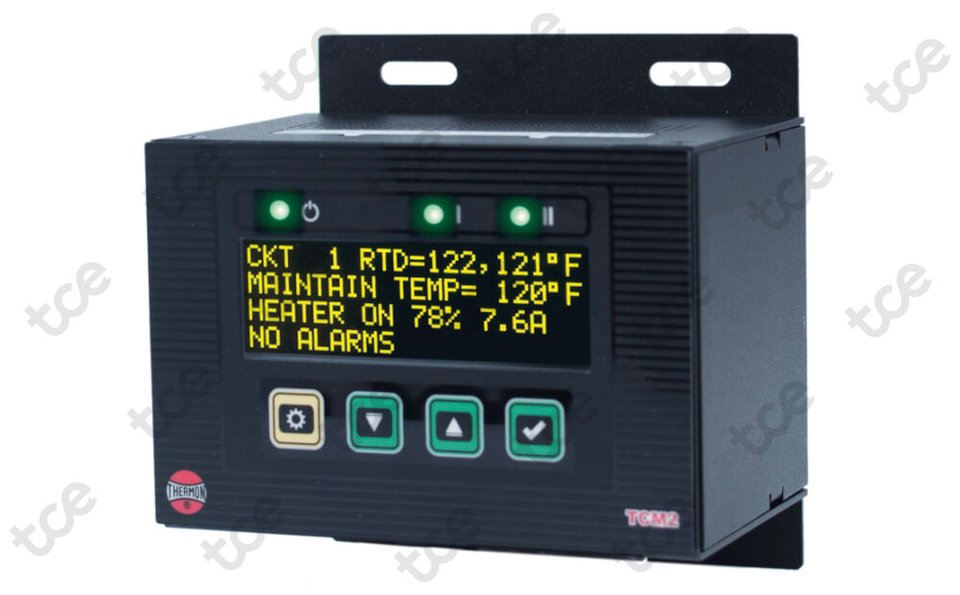

The Thermon TraceNet TCM2 is a microprocessor based temperature control and monitoring module developed specifically for heat tracing applications. The unit provides control and monitoring capabilities via digital information display for one or two heat tracing circuits with input from up to two RTDs per circuit.
Up to 247 TraceNet TCM2 modules can be interconnected in a RS485 communication network, for a total cumulative distance of up to 1220 meters. For additional communication distances, a repeater option is available.
Features
A TCM2 control and monitoring unit offers the following features:
- Reduces Man-hours:
With the simplified, 4-button user interface, operators can quickly program the TCM2. The new TCM2 wiring harness allows maintenance personnel to swiftly install, remove, and conduct troubleshooting of the system. - Improved Control Methods:
The TCM2 utilizes multiple control methods, similar to the Thermon TCM18 (On/Off, Soft-Start, Proportional) and features the upgraded Ambient Proportional Control (APC and APCM) that employs the energy saving method of Ambient Proportional Control with the higher current capacity of the mechanical relay. - Upgraded Communications:
The TCM2 can network with any Thermon Controller to the Genesis Network or any plant DCS system via RS-485 in either MODBUS ASCII or RTU. In the panel, the TCM2 can employ a converter to offer MODBUS TCP/IP Ethernet.
Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Specification guide
English (Americas) specification guide
Certifications/Approvals
The TCM2 meets the requirements of NFPA 13 for Fire Sprinkler main line applications as outlined in UL 515A. Please contact TC-E for further information and documentation.
MET
ANSI/UL 61010-1 CAN/CSA-C22.2 No. 61010-1
CE
EN61010-1
Hazardous Locations (Classified) when used used within Thermon TraceNet TCM2 control panels
CSA
CL I, Div 2, Gp BCD T4
ANSI/ISA 12.12.01
CSA C22.2 No. 213
-40°C ≤ Ta ≤ 60°C
Specifications
General
- Manufacturer
- Thermon
Ratings
- Control and monitoring capacity
- 18 heat tracing circuits
- Nominal module supply voltage
- 120-240 Vac 50/60 Hz
- Input current
- 1.5 Amp max.
- Power consumption
- 70 watts
- Minimum ambient temperature
- -40°C
- Storage ambient temperature
- -40°C to 85°C
- Data retention
- Non-volatile EEPROM
- Power clamp function
- Programmable from 20% to 100%
- Temperature input
- Up to 36 3-wire platinum 100 Ω RTDs
- Temperature control range
- -129°C to 600°C
- Control band
- Programmable in increments of 1 degree
- High operating current alarm and trips
- 0.1 to 100 Amps
- Low operating current alarm
- 0.1 to 100 Amps
- Ground leakage alarm and trips
- 20 to 225 mA (in 1 mA increments)
- Alarm relays
- 3 sealed dry contacts
- Alarm relays ratings
- 0.4 Amps resistive at 24Vdc/Vac
- Auxiliary output power
- 24 Vdc at 0.5Amps
- Self-test frequenc
- Programmable from 2 to 99 hours
- Communication
- Modbus ASCII/RTU via Dual RS 485 ports
- Communication rate
- Up to 57600 Baud
- Certifications
- ATEX
- Pollution category
- 2
