RTD-MI-120-HT
Features
- MI RTD probe
- Maximum 593°C
- 3 meter
Application
The Thermon RTD-MI-120-HT is designed for use as control input for freeze protection and temperature maintenance applications requiring pipewall or tankwall temperature sensing. The RTD-MI-120-HT features mineral insulated lead wire construction. RTD assembly includes 1/2" NPT connector. Enclosure to be provided by others. The RTD-MI-120-HT is suitable for use in heat tracing applications where surface temperatures do not exceed 593°C.

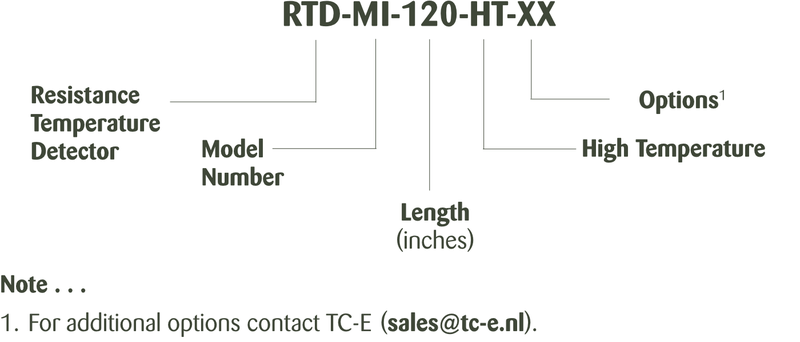

Product reference legend
Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Certifications/Approvals
Canadian Standards Association
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 2, Groups A, B, C and D
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- RTD lead wire
- Mineral insulated
- RTD leads length
- 3 m
- RTD type
- 3-wire platinum thin film
- RTD resistance
- 100 ohms at 0°C
- RTD calibration
- ASTM E1137, DIN standard 43760/BS1904/IEC 751
- Temperature coefficient
- 00385 Ohms/Ohms - °C
- Maximum sensor temperature
- 593°C
- Sensor sheath material
- 316 stainless steel
- Sensor sheath diameter
- 64 mm
