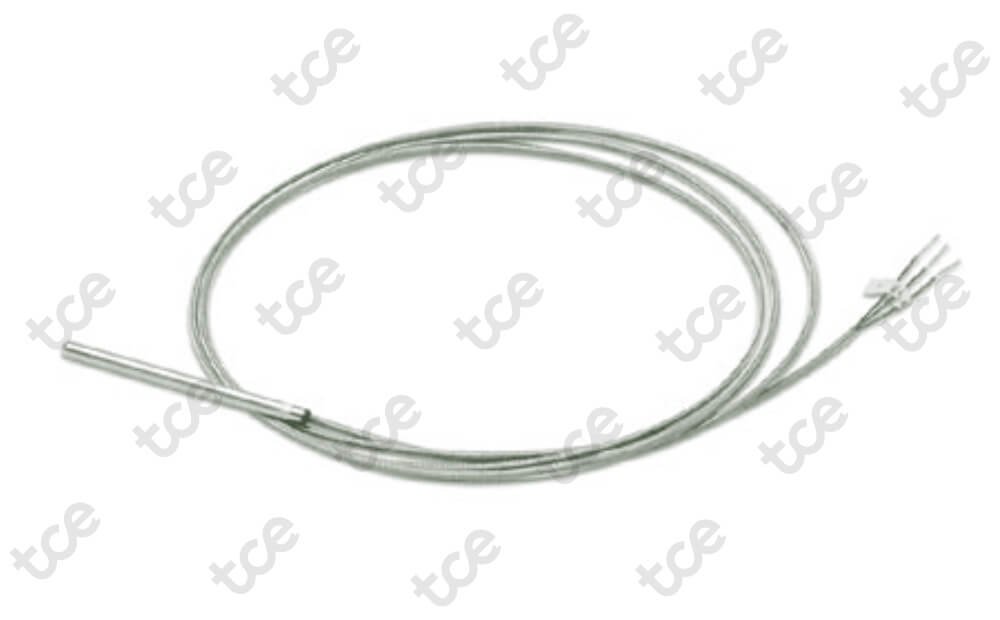

RTD-500-3
Features
- RTD probe
- Maximum 260°C
- 1.83 meter
Application
The Thermon RTD-500-3 is designed for use as control input for freeze protection and temperature maintenance applications requiring pipewall or tankwall temperature sensing. The RTD temperature sensor allows ease of field wiring with conventional heat tracing connection kits. Adaptable for use with a variety of enclosure and mounting methods. The RTD-500-3 is suitable for use in heat tracing applications where surface temperatures do not exceed 260°C.
| SKU | P/N | Item |
|---|---|---|
| TMN.A19.013 | RTD-500-3 | RTD-500-3 |
Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Certifications/Approvals
Canadian Standards Association
The RTD-500-3 is CSA certified for use in North America.
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups E, F and G
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- RTD lead wire
- 24 AWG Kapton insulated (with SS braid)
- RTD leads length
- 1.83 m
- RTD type
- 3-wire platinum thin film
- RTD resistance
- 100 ohms at 0°C
- RTD calibration
- ASTM E1137, DIN standard 43760/BS1904/IEC 751
- Temperature coefficient
- 00385 Ohms/Ohms - °C
- Maximum sensor temperature
- 260°C
- Sensor housing material
- T304SS
- Bulb dimensions
- 4.76 x 76 mm
