RTD-200R
Features
- Removable RTD probe
- Maximum 260°C
- NEMA 4
Application
The Thermon RTD-200R is designed for use as control input for freeze protection and temperature maintenance applications requiring pipewall or tankwall temperature sensing. A metallic NEMA 4 enclosure and terminal block allows ease of wiring into a single unit that can be installed directly onto a heat traced pipe. The RTD sensor can be removed and inspected or replaced without disturbing the thermal insulation. The RTD-200R is suitable for use in heat tracing applications where surface temperatures do not exceed 260°C.
Features
- Removable RTD sensor allows inspection or replacement without disturbing thermal insulation
- Terminal strip connections for wiring reliability
- Durable fluoropolymer insulated leads
- Extended sensor length for reduced sensitivity to ambient temperature changes
- Thermally conductive pad assures accurate sensing of heat traced pipe and vessel surface temperatures
- Precision fit of internal sensor ensures accurate sensing while allowing removability

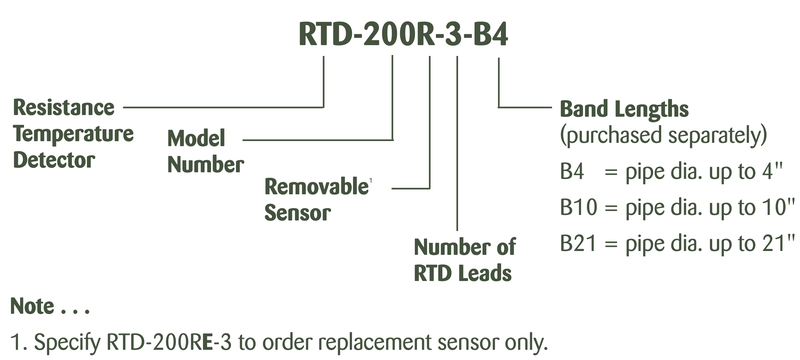

Product reference legend
Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- Electrical connection
- Terminal blocks
- Enclosure rating
- NEMA 4
- Enclosure hub size
- 3/4” NPT female hub
- RTD leads
- 22 AWG fluoropolymer
- RTD type
- 100 ohms at 0°C
- RTD calibration
- DIN Standard 43760/BS1904/IEC 751
- Temperature coefficient
- 00385 Ohms/Ohms - °C
- Maximum sensor temperature
- 260°C
- Sensor housing material
- Stainless steel
