RTD-100-HT
Features
- 316 SS (D1) RTD probe
- Maximum 649°C
- NEMA 4/7
Application

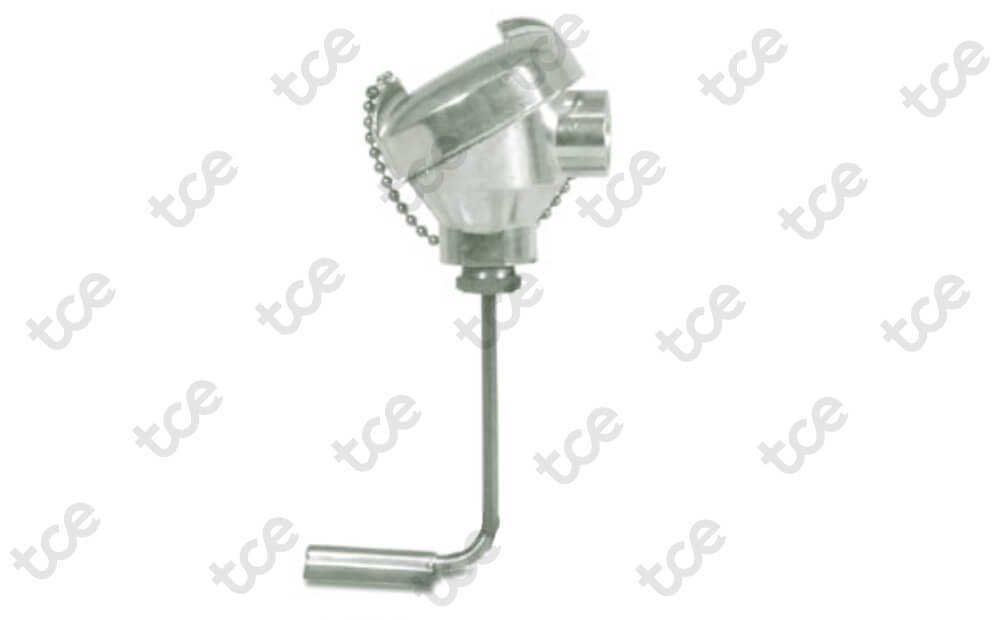

The Thermon RTD-100-HT is designed for use as control input for freeze protection and temperature maintenance applications requiring pipewall or tankwall temperature sensing. A cast-aluminum NEMA 4/7 enclosure and terminal block assembly allows ease of field wiring. The sensor housing and mounting pad provide mounting support while ensuring accuracy in temperature sensing. The RTD-100-HT is suitable for use in heat tracing applications where surface temperatures do not exceed 649°C. The RTD-100-HT-D1 (for hazardous locations) is provided with a cast aluminum enclosure and is CSA certified for use in North America.
Product reference legend

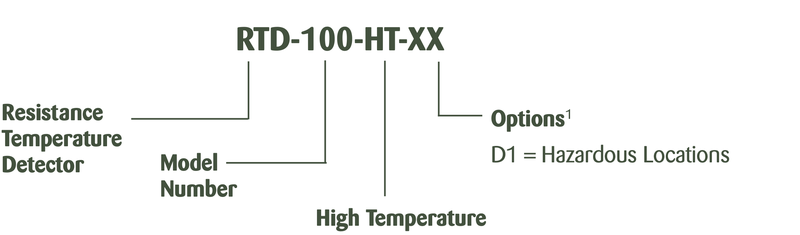

Resources
Datasheet
English (Americas) datasheet
Installation manual
English (Americas) installation instructions
Certifications/Approvals
Canadian Standards Association
The RTD-100-HT is CSA certified for use in North America.
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 2, Groups A, B, C and D
Class II, Division 2, Groups E, F and G
The RTD-100-HT-D1 is provided with a cast aluminum enclosure and is CSA certified for use in North America.
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 1, Groups A, B, C and D
Class II, Division 2, Groups E, F and G
Specifications
General
- Manufacturer
- Thermon
- Unit of measurement
- Piece
Ratings
- Electrical connection
- Ceramic strip with brass terminals
- Enclosure rating
- NEMA 4/7
- Enclosure hub size
- 3/4” NPT female hub
- RTD leads
- 22 AWG fluoropolymer
- RTD type
- 3-wire platinum thin film
- RTD resistance
- 100 ohms at 0°C
- RTD calibration
- Per ASTM E1137, DIN standard 43760/BS1904/IEC 751
- Temperature coefficient
- 00385 Ohms/Ohms - °C
- Maximum sensor temperature
- 649°C
- Sensor housing material
- 316 stainless steel
